SARE Grant: Results

IMG_20171115_132738859 (1).jpg

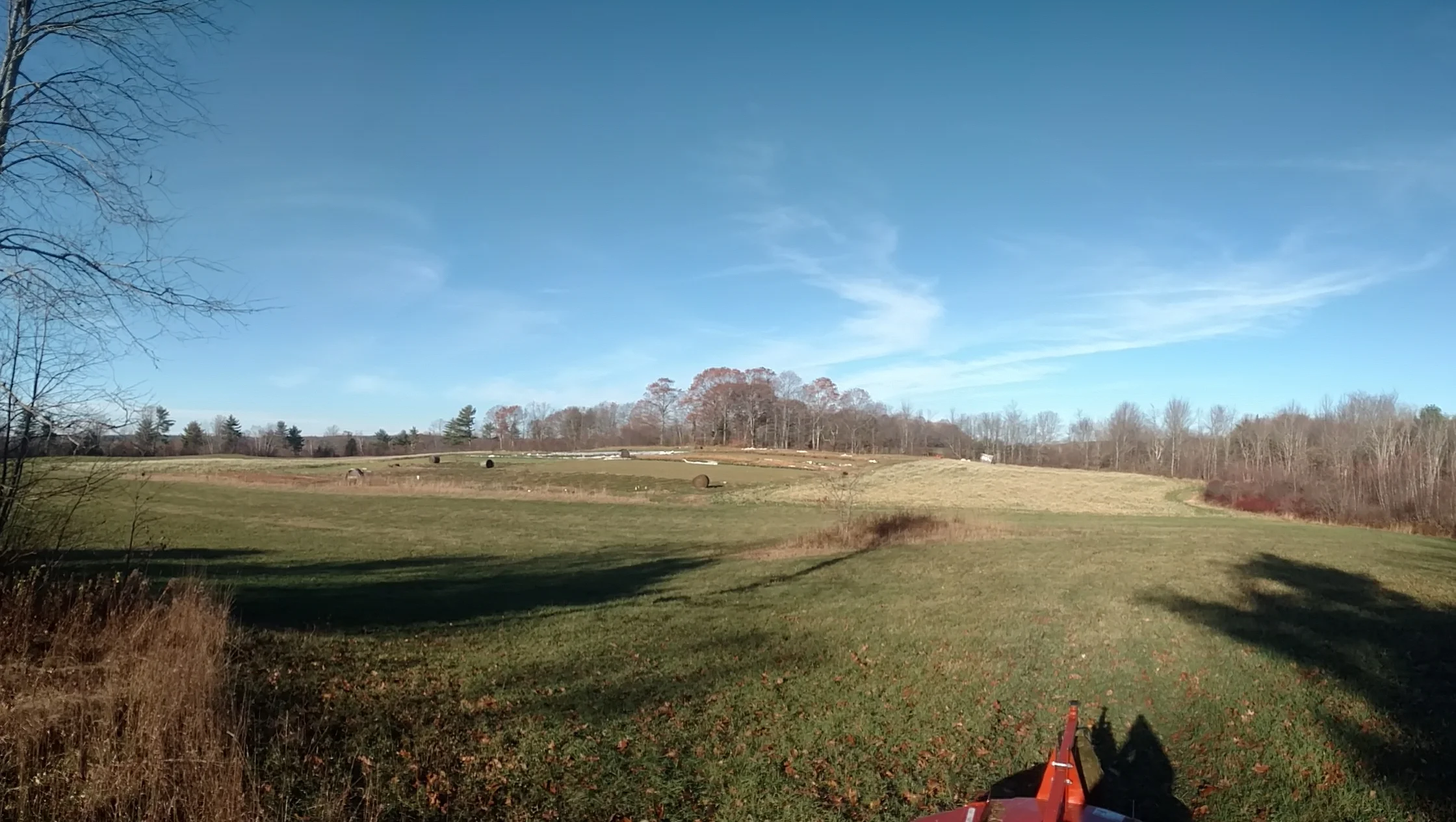

Winter has finally afforded a chance to look back at last year's SARE grant, and it's fair to say that the experiment produced some interesting results. The field looks a whole lot more white right now than the photo to the left.

To recap, the scope of my research grant was to look into the use of spent brewers' grain - the main byproduct of beer production - as a soil amendment for crop production. I was investigating, in particular, a way to prevent the spent grains from going quickly anaerobic, which any farmer or home gardener can tell you is not ideal. You can read more about the bokashi composting process in the previous two blog posts.

It was a remarkably slow fruiting season for us in Maine last year, but a yield increase of 26-29% was noted in the experimental bSBG/SBG huskcherry groups over the control, respectively. I'm unsure, though, if the yield increases were a result of greater fruit set. The experimental groups certainly grew more vigorously (see the previous blog post for photos), but a surprising thing happened when the fall frosts settled in earnest in autumn. The bSBG/SBG huskcherries fared far better while the control withered, allowing almost a month longer for ripening of harvestable fruit. This, despite all three being under the same frost protection row cover.

This image shows the control huskcherries [right] compared next to the SBG experimental group [left] after the second frost in October. A few errant kale plants in front of the control give a misleading sense of the control's vibrancy.

So, was the yield increase the result of plant size and fruit set or the longer harvest season? And what is it that the huskcherries were able to take into their bodies from the SBGs that offered greater frost protection? Not sure, but it sure feels good to come away with a few more questions.

SARE salanova.jpg

As for the Salanova, all but one the varieties showed increases in yield. The % yield difference of the compared to the control group is suggestive, but varied more widely than I feel comfortable drawing solid conclusions from. It was a mistake, I think, to try to grow multiple varieties of Salanova versus a single variety of head lettuce. My hope was to gain efficiency by combining my farm's crop production with the grant research, but instead it complicated the experiment. A good lesson on the importance of limiting the scope of future experiments.

Screen Shot 2018-01-21 at 2.12.08 PM.png

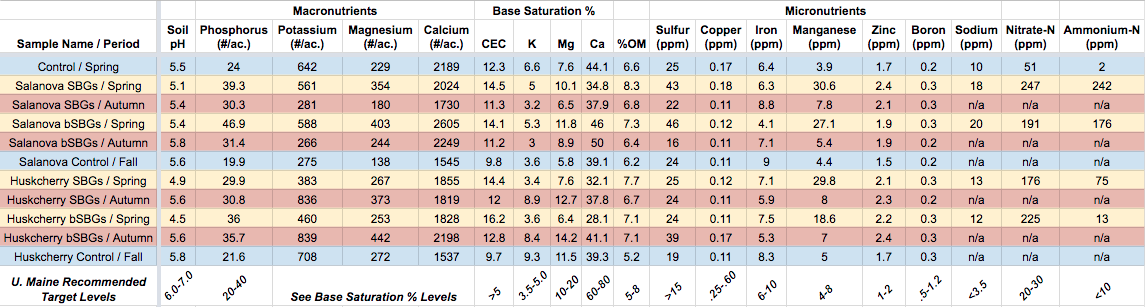

I took soil samples as a final piece of last year's work to compare to the spring test results, which together give some indication of the qualities of spent brewers' grains and their lasting effect in soil. Important to consider using these results is that the spring soil tests were taken only a week after SBG/bSBG incorporation.

The spring tests show an increase in phosphorus, magnesium, nitrogen, manganese, and zinc, as well as .5-1.5% increase in organic matter, and a 2-4% increase in cation exchange capacity [CEC]. For those unfamiliar, CEC is a measure of a soil's ability to hold positively-charged nutrients. One way to think about it is that CEC is a storehouse plants, microbiology, and fungi draw on for their growth. The soil test results also show a decrease in potassium versus the control, and mixed results for calcium and sulfur levels.

The post-harvest soil tests indicate the following about using SBGs as a soil amendment:

  • End of the season testing show strong measures of increase of phosphorus, manganese, zinc, and OM in the soil. Magnesium trended towards increased levels in the soil.
  • Some tests – for potassium, iron, sulfur, and CEC – showed mixed results of both increases and decreases that would benefit from further study.
  • Soil pH showed increases, but I believe this is likely a result from lime applied in 2016. This is supported by the fact that the pH control groups also increased during the season.
  • Finally, and curiously, where calcium levels showed a decrease in the experimental SBG plots, the levels in the bSBG plots showed increases [+9#/ac. and +60#/ac.].

So, this is where things stand with the experiment. It's certainly an amendment I intend to continue working with, and the bokashi composting process proved to be an excellent way to stabilize the SBGs for use on the farm. The 55-gallon drums were an easy way to transport and inoculate the grains. What I'm interested in now is sending samples off of SBGs and bSBGS for direct analysis at the University of Maine. Having a more precise sense of the constituent parts of the spent brewers' grain is critical for myself, and hopefully other farmers, to make informed choices as to an appropriate application rate based on soils' needs.

SARE Grant Introduction

I want to take a moment to introduce you to one of the bigger projects at Full Fork this year. Above is a photo of spent brewers' grains from Oxbow Brewery in Newcastle, ME. In the fall, I submitted a research grant proposal to SARE (Sustainable Agriculture Research & Education), which is part of the USDA that awards funds for farmers seeking to test an innovative idea in the field.

For me, that's using a particular composting method called bokashi with the spent brewers' grain [SBG], applying the composted material as a field amendment, and then monitoring its effect on plant growth and yield. Backing up a bit, though...

What are spent brewers' grain?

SBG is the major byproduct of beer production. It's what's leftover after what's called the masher steeps the grain and malt in hot water and converts the grains' starches into fermentable sugars. To breweries, SBGs are a waste product. To farmers, it's a potential source to significantly increase a field's organic matter.

The problem...

While SBGs have a long history as a feed supplement for pigs and cows, it isn't without its challenges, especially for vegetable farmers. It emerges from the masher essentially pasteurized - in other words, with very few living microorganisms - with both high nitrogen content (around a 9:1 to 12:1 C:N ratio) and high moisture content (depends on a brewery's equipment, but 70% isn't atypical). All in all, an excellent breeding ground for anaerobic bacteria, which, if you keep a compost pile at home you might be familiar with. They are the culprits producing the foul smell when your pile is too wet and needs adjustment. The finished product of typical anaerobic decomposition is of poor quality for farmers, can possibly be too acidic to apply directly to plants, and carries a health concern of harmful anaerobes such as E. coli.

The potential.

There's a burgeoning craft brewery market in U.S.. According to the Brewers' Association, the number of craft breweries has more than doubled nationally to 5,300 since 2012. Finding ways to use SBGs safely and effectively would present an excellent, free source of organic matter that farmers can use to improve their soils.

More broadly, building soil and working with spent brewers' grain is a way to mitigate climate change. When people think of climate change they often think of fossil fuels, energy production, and transportation. Conventional agriculture plays a part as well. It currently accounts for about 9% of CO2 emissions in the U.S.. Farming, though, also offers the very best storage space for carbon: the soil. This is the concept of carbon sequestration. With proper practices we can take atmospheric carbon, grow crops, and put that carbon back where it belongs.

So, burgeoning craft brew scene. Burgeoning local food production. Seems like a good match.

The SARE grant.

Now, there's already a working model for composting SBGs on a large-scale. Gowan Batist of Fortunate Farm in Caspar, CA, in partnership with North Coast Brewing Co., is doing it. Using a big windrow turner and a 45hp hydrostatic tractor, her farm is actively aerating the SBGs to prevent them from going anaerobic. It's an excellent setup if you have the tractor equipment and a are seeking to partner with a larger brewery.

The purpose of Full Fork's study is to trial a model better suited for a farm pairing with a modestly-sized brewery, and one that doesn't require specialized equipment to handle the SBGs, which could be a major deterrent for those seeking a relationship with their local brewery. The way I think this can be done is by working with the SBGs high moisture content rather than fighting against it.

Enter bokashi.

In simple terms, bokashi is a form of beneficial anaerobic decomposition that originates from Japan. The primary player is lactobacillus, the same bacteria used to make sauerkraut. By incoulating the SBGs in airtight 55-gallon drums, letting it ferment for two weeks, you can till it into the ground and it will fully integrate in another two weeks. The lactobacillus colonizes and predigests the biomass, and when exposed to aerobic conditions, dies, and is consumed by aerobic bacteria itself. It's a microbe eat microbe world out there.

So, that's the gist. And I have fair confidence that it will work. So far this spring, I've been stockpiling the bokashi'd-SBGs for the project. As you can see from the photos below, the winter's snow is nearly gone. It's about time to get out into the field.

I'll do a future post on the actual process of working inoculating the SBGs, as well as later posts about findings, results, etc.
